Drain & Trap Connectors

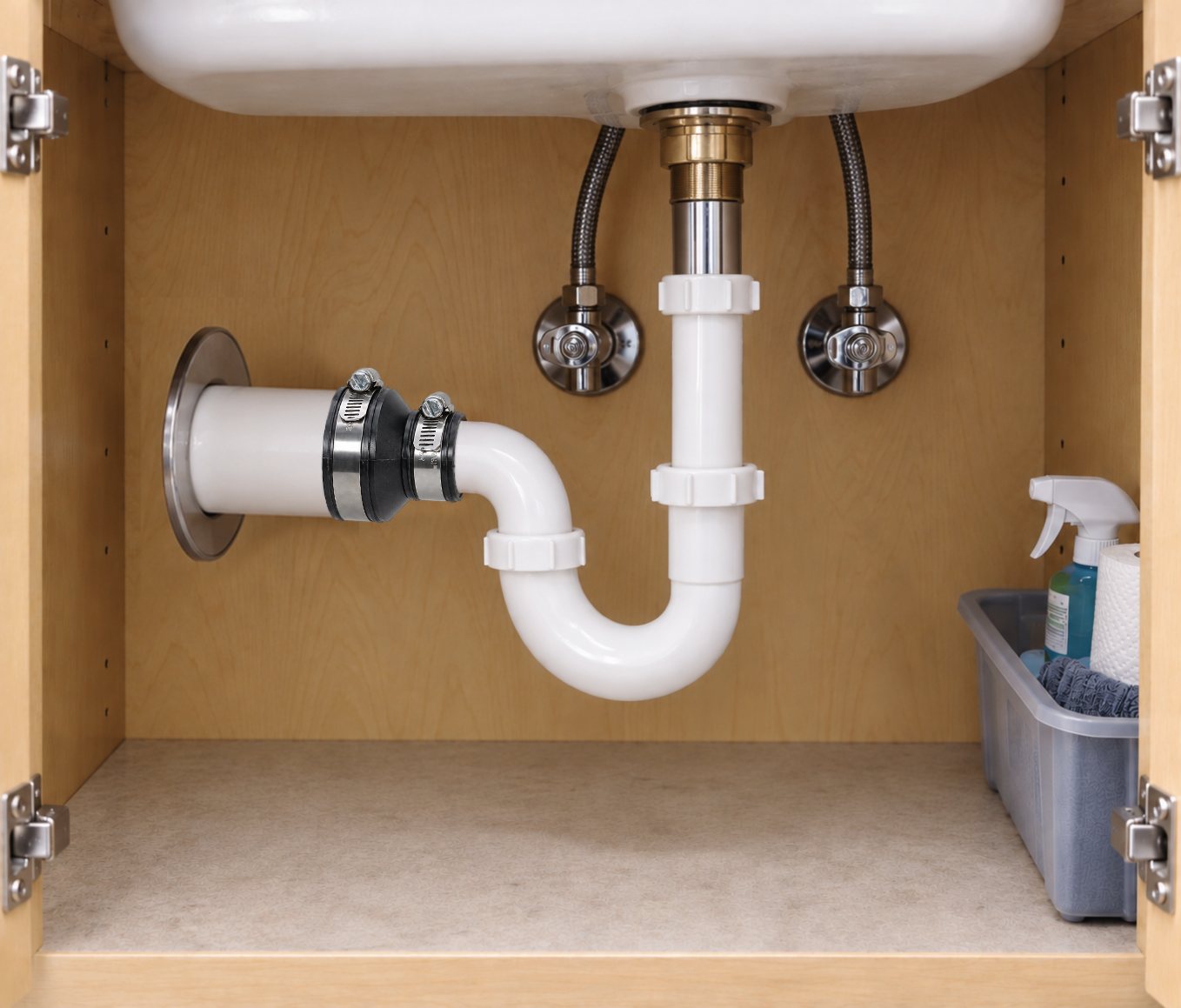

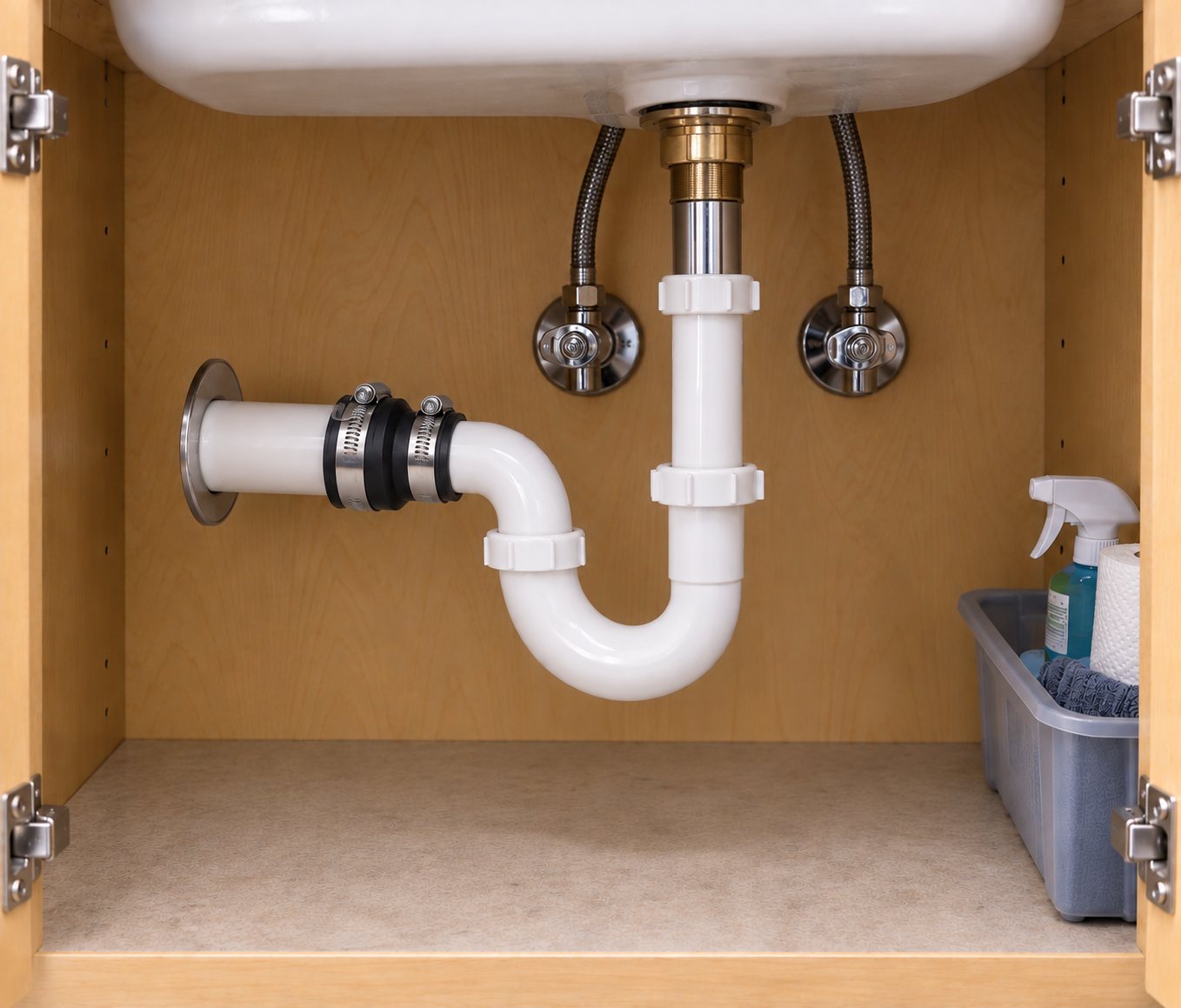

Connect a tubular sink trap to 1½″ or 2″ drain pipe, or join two pieces of tubular drain pipe. No glue or primer.
Slide on. Tighten. Done.
Place the ends over the pipes and tighten the stainless steel clamps. For installing, repairing or modifying under-sink plumbing in homes and light commercial buildings.
- Leak-free seal. Without the mess or cure time of solvent welding.
- No glue, no mess. No primer, no odor, no waiting.
- Easy to service. Loosen the clamps to remove or adjust for maintenance or clearing clogs, just like traditional tubular fittings.
- Durable PVC. A flexible PVC body made for typical household DWV conditions.
- For DWV only. Maximum test pressure 4.3 psi. Not for pressurized systems.
DTC-150 and DTC-215

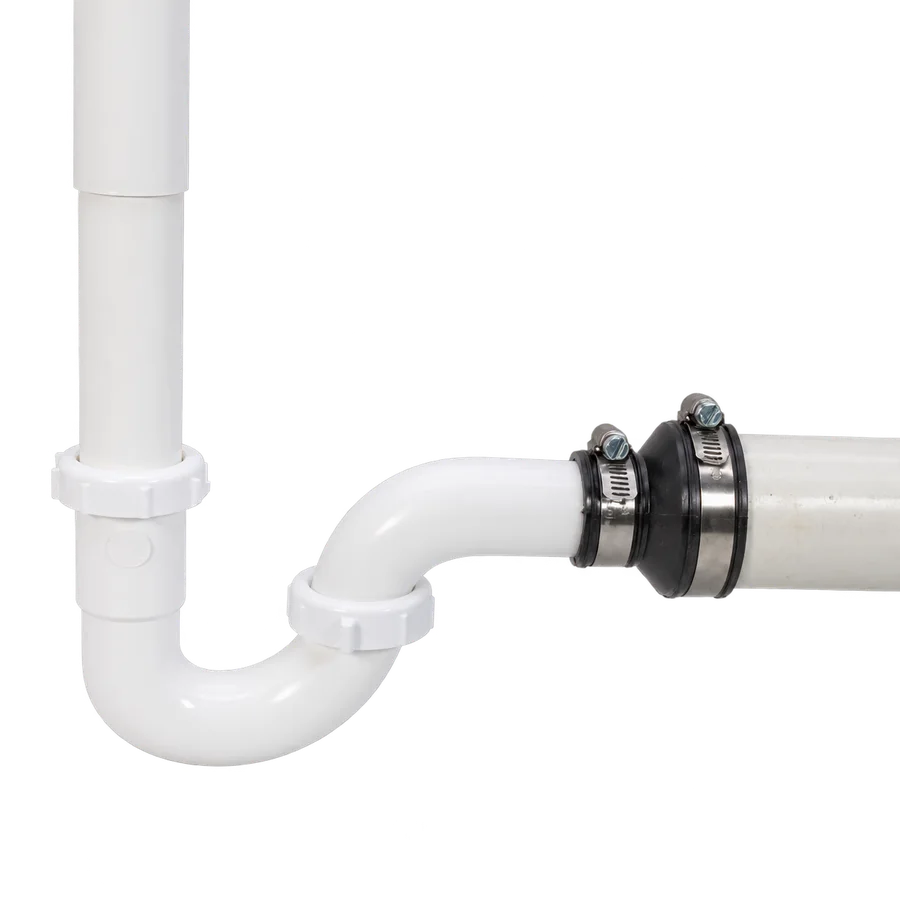

Connect a 1¼″ or 1½″ tubular trap to 1½″ or 2″ drain pipe.
TC-150

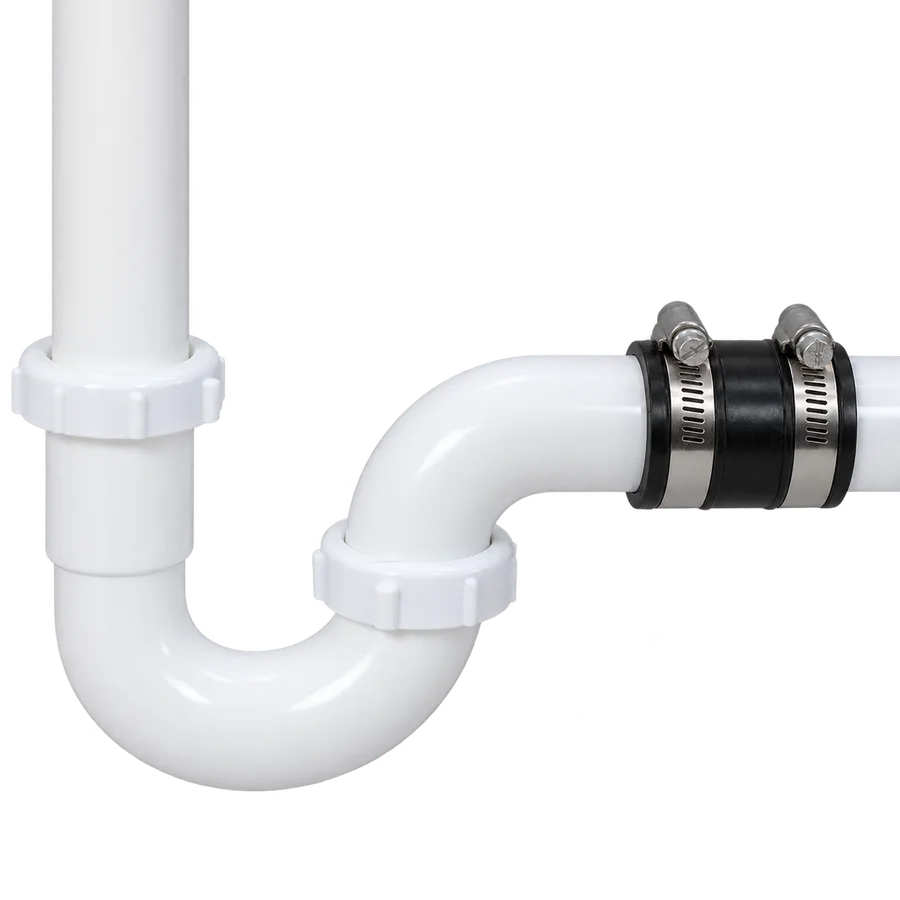

Extend, repair or alter any combination of 1¼″ or 1½″ tubular drain pipe.
Metal or plastic
The DTC-150 and DTC-215 connect to plastic, cast iron or steel drain pipe.
TC-150 mixes materials
Brass to brass, plastic to plastic, or brass to plastic. Can be cut shorter for tight spaces.
Right where you need them
Which one do I need?
Two questions. Sizes are nominal.
Tubular pipe is the thin-wall brass or plastic tube used for sink traps and drain tubes.
Answer both questions, and your part shows here.

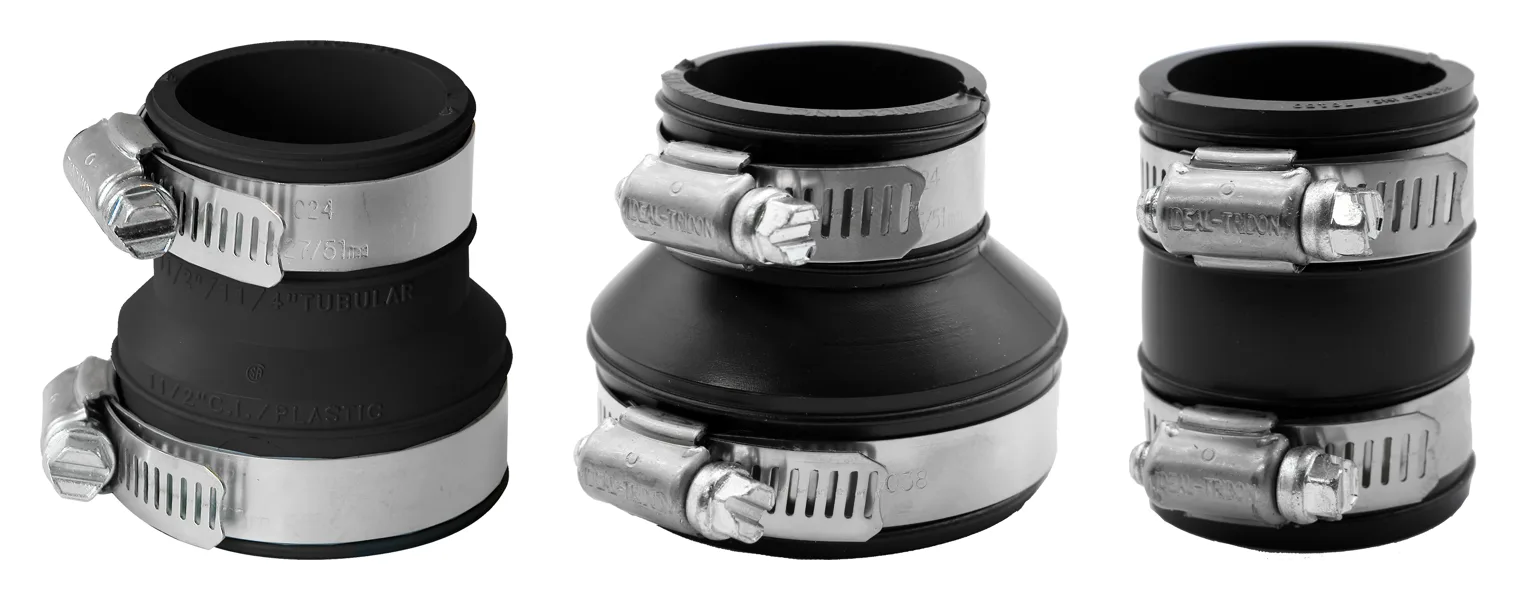

Three connectors for tubular drains

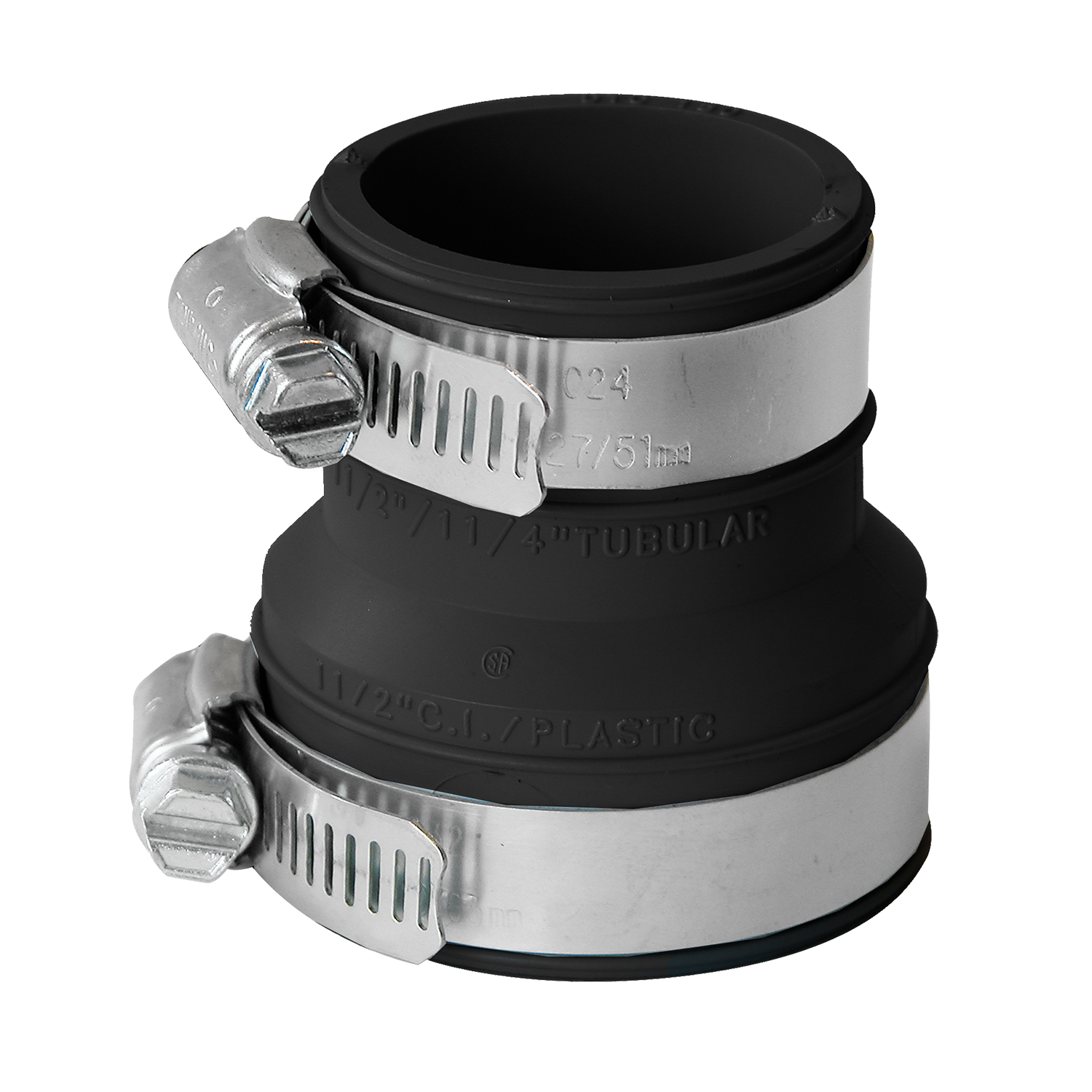

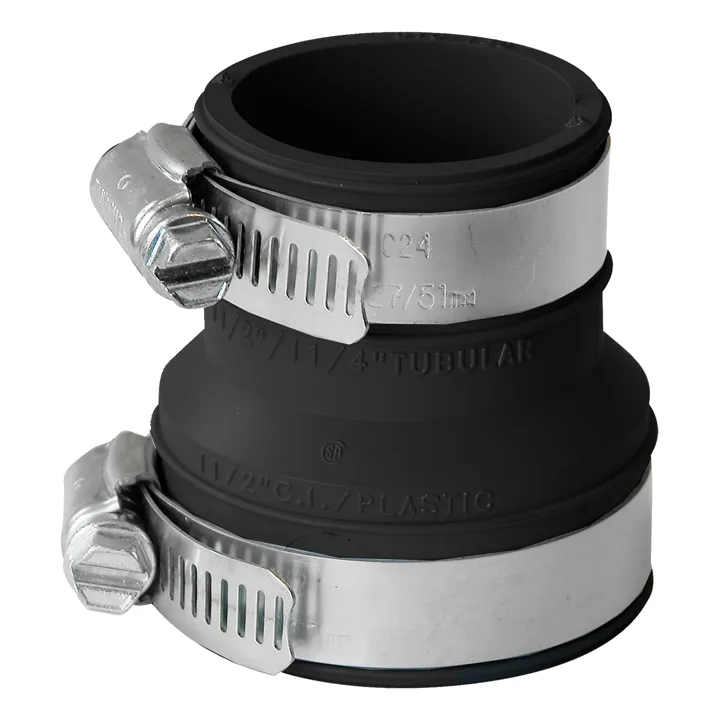

DTC-150
Retail package: PDTC-150
1½″ drain pipe × 1¼″ or 1½″ tubular trap
Connects a tubular trap to 1½″ plastic, cast iron or steel drain pipe, or to 2″ copper drain pipe.
Drawing ›

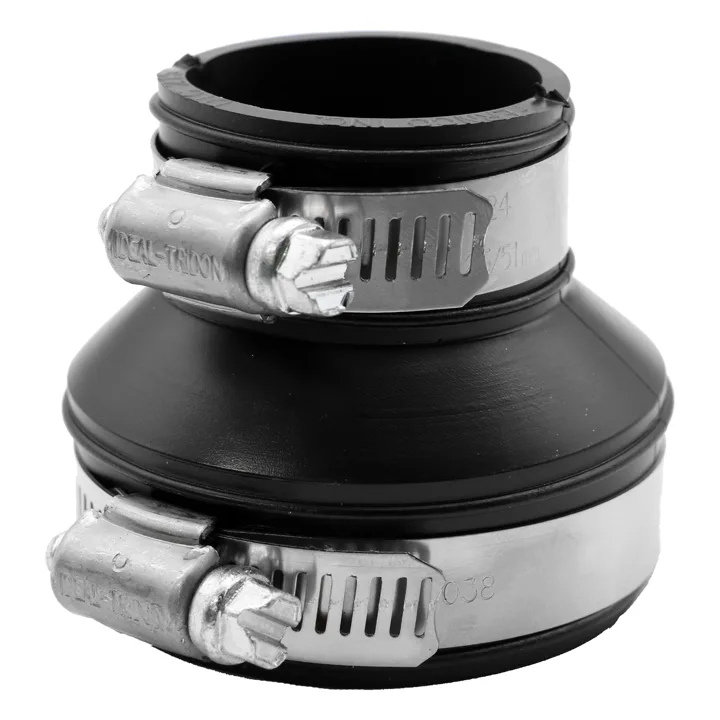

DTC-215
Retail package: PDTC-215
2″ drain pipe × 1¼″ or 1½″ tubular trap
Connects a tubular trap to 2″ plastic, cast iron or steel drain pipe. For 2″ copper, use the DTC-150.
Drawing ›

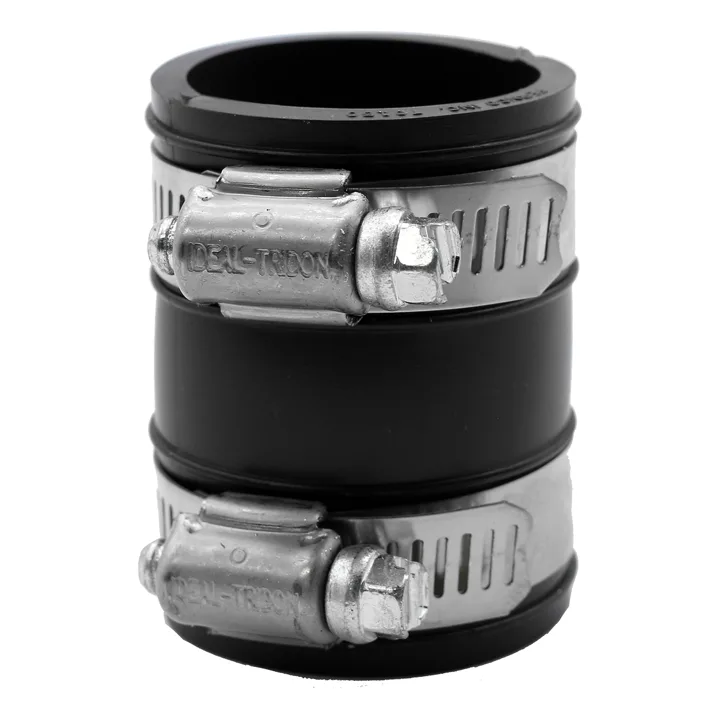

TC-150
Retail package: PTC-150
1¼″ or 1½″ tubular × tubular
Extends, repairs or alters tubular drain pipe, brass or plastic in any combination. Can be cut shorter for tight spaces.
Drawing ›Smaller pipe into a 1½″ or 2″ opening?
The DTC-110 and DTC-210 connect 1½″ or 2″ pipe to ¾″ or 1″ plastic or 1″ copper. You’ll find them with our Pipe Sleeve Seals.
Three steps
- Onto the first pipeLoosen the clamps and slide one end of the connector over the first pipe. Snug that clamp slightly.
- Onto the other pipeFit the other end over the second pipe. On the TC-150, center the joint and push the pipes in until they touch.
- Tighten and testTighten both clamps to 60 in-lb on the DTC-150 and DTC-215. Hand tighten the TC-150. Then test for leaks.
Caution: don’t over-tighten the TC-150. Tubular pipe can crush.
Specifications
Bore A is the tubular end. Dimensions in inches.
| Part | Connects | Bore A | Bore B | Length |
|---|---|---|---|---|
| DTC-150PDTC-150 | 1¼″ or 1½″ tubular trap to 1½″ drain pipe or 2″ copper | 1.46″ | 1.95″ | 2.25″ |
| DTC-215PDTC-215 | 1¼″ or 1½″ tubular trap to 2″ drain pipe, except copper | 1.46″ | 2.38″ | 2.31″ |
| TC-150PTC-150 | 1¼″ or 1½″ tubular drain pipe, both ends | 1.46″ | 1.46″ | 2.34″ |
| Use | Drain, waste and vent (DWV) only |
| Body | Flexible PVC |
| Clamps | Stainless steel |
| Installation torque | DTC-150 and DTC-215: 60 in-lb. TC-150: hand tighten. |
| Maximum test pressure | 4.3 psi (29.6 kPa) |
| Part numbers | P part numbers (PDTC-150, PDTC-215, PTC-150) are the retail packaged versions |
| Made in | USA |
| Listing | ICC-ES PMG listed, PMG-1117 (DTC-150, DTC-215, TC-150) |
| Standard | CSA B602 |
| Codes | IPC, UPC, IRC and National Plumbing Code of Canada, per PMG-1117 |
Common questions
What’s the difference between DTC-150 and PDTC-150?
The P part number is the retail packaged version, sold in home centers and hardware stores. The same goes for PDTC-215 and PTC-150.
Which connector fits 2″ copper drain pipe?
The DTC-150. The DTC-215 is for 2″ plastic, cast iron or steel drain pipe, not copper.
Will it connect to old cast iron or steel drain pipe?
Yes. The DTC-150 and DTC-215 connect a 1¼″ or 1½″ tubular trap to plastic, cast iron or steel drain pipe.
What is tubular pipe?
The thin-wall brass or plastic pipe used for sink traps and drain tubes, in 1¼″ and 1½″ sizes. It’s smaller on the outside than standard 1½″ drain pipe.
Are they allowed by code?
The DTC-150, DTC-215 and TC-150 are listed by ICC-ES PMG (PMG-1117) to CSA B602, for use under the IPC, UPC, IRC and National Plumbing Code of Canada. Use above ground is subject to approval by your local code official, so check before you start.
Can I take it apart later?
Yes. Loosen the clamps to adjust or remove the connector for servicing, then tighten them again.
Can I use these on a water supply line?
No. Drain & Trap Connectors are for drain, waste and vent (DWV) use only.
Can I join brass tubular pipe to plastic?
Yes. The TC-150 connects brass to brass, plastic to plastic, or brass to plastic, in 1¼″ or 1½″ tubular sizes.
Can I cut the TC-150 shorter?
Yes. The TC-150 can be cut shorter for connections where space is limited.
How tight should the clamps be?
Tighten the DTC-150 and DTC-215 clamps to 60 in-lb. Hand tighten the TC-150 clamps. Tubular pipe is thin-walled, and over-tightening the TC-150 can crush it.
Documents
Installation sheet, dimensional drawings, the ICC-ES PMG listing and the catalog pages.
