FSDP-QUAD
Quad Connector

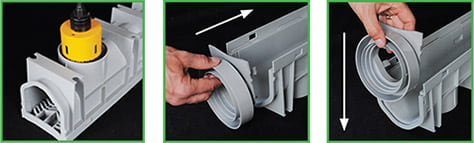

Creates left- or right-hand extensions as well as T and X configurations. Required openings can be cut to match the desired layout.
Surface Water Management System
StormDrain Plus
Designed for stronger and easier drainage, StormDrain Plus provides a durable, modular solution for collecting and redirecting standing surface water.
Improved Drainage
Purposeful details from top to bottom.
The durability and high performance of Fernco StormDrain Plus provide a long-lasting solution for collecting and removing standing surface water.
From the textured grate to the reinforced channel construction, each component is designed to simplify system layout, assembly and long-term drainage performance.
- ADA and heel-guard-compliant grate
- Textured non-slip surface
- Concave grate efficiently transfers water
- Grates lock securely into the channel
- Interlocking channel sections
- Reinforced rib construction
- Three bottom outlet locations
- UV-inhibited materials
- No clips or screws required
- Cavity feet help secure the channel in concrete
39.5"
Modular Channel Length
Channel sections interlock to create continuous drainage runs.
3
Bottom Outlet Locations
Multiple outlet positions provide added flexibility when laying out the drainage system.
4-Way
Configuration Options
Use the Quad accessory to create left, right, T and X configurations.
Class B
Traffic Load Rating
Suitable for medium-duty pneumatic tire traffic when properly installed.
Where It Works
Designed for everyday drainage challenges.
Configure StormDrain Plus to help collect and redirect surface water wherever pooling creates inconvenience, damage or a slipping hazard.
Driveways
Collect water near garage entrances and across paved surfaces.
Patios
Redirect water away from outdoor living and gathering spaces.
Swimming Pools
Manage splash-out and surface water around pool decks.
Sports Courts
Remove standing water that can create hazardous playing conditions.
Gardens
Direct natural runoff away from planting beds and landscapes.
Walkways
Drain pooling water from pedestrian paths and entrances.
See the System in Action
Plan, connect and install.
See how the channel sections and accessories come together to create a complete surface drainage solution.
Installation Overview
Build the right foundation for reliable drainage.
Proper preparation, placement and backfill help support the channel and maintain the intended grade.
1
Prepare the Trench
Excavate enough space for a two-inch compacted sand base and the required concrete support along both sides of the channel.
2
Set the Grade
Establish the finished channel height with a string line, then spread and compact the sand base.
3
Prepare the Outlet
Determine the outlet location and open the appropriate bottom outlet before setting the channel in place.
4
Connect the System
Join channel lengths and install the End Cap, End Outlet or Quad accessory required for the layout.
5
Position and Secure
Work from the outlet end, follow the string line and secure the channel before placing the surrounding material.
6
Backfill and Cure
Protect the grates during the pour, place the required concrete support and allow the concrete to cure fully before use.
Important: Installation requirements vary by surface type and traffic conditions. Review the complete installation instructions before beginning the project. Do not place asphalt directly against the channel.
Product Specifications
Built for dependable surface drainage.
StormDrain Plus combines modular components, durable materials and flexible outlet options for residential and light-duty commercial installations.
Designed For
- Residential surface drainage
- Light-duty commercial applications
- Driveways, patios, pools, courts and walkways
Product Features
- 39.5-inch channel length
- UV-inhibited channel, grate and accessories
- ADA and heel-guard-compliant grate
- Textured non-slip grate surface
- Three bottom outlet locations per channel
- Interlocking channel joining system
Performance
- Class B load range of 61–175 psi
- Recommended for medium-duty pneumatic tire traffic, automobiles and light trucks traveling under 20 mph
Complete the Layout
Accessories built for flexible configurations.
Create straight runs, corners, branches and outlet connections with components designed specifically for StormDrain Plus.
FSDP-EC
End Cap
Closes the end of the channel and connects securely without separate clips or screws.
FSDP-EO
End Outlet
Provides an end-of-run connection for compatible 3-inch and 4-inch sewer, drain and Schedule 40 configurations.
Product Selection
Part Numbers
| Part No. | Description | Carton Qty. |
|---|---|---|
| StormDrain Plus Products | ||
| FSDP-CHGG | StormDrain Plus 39.5-inch grey channel with grate | 9 |

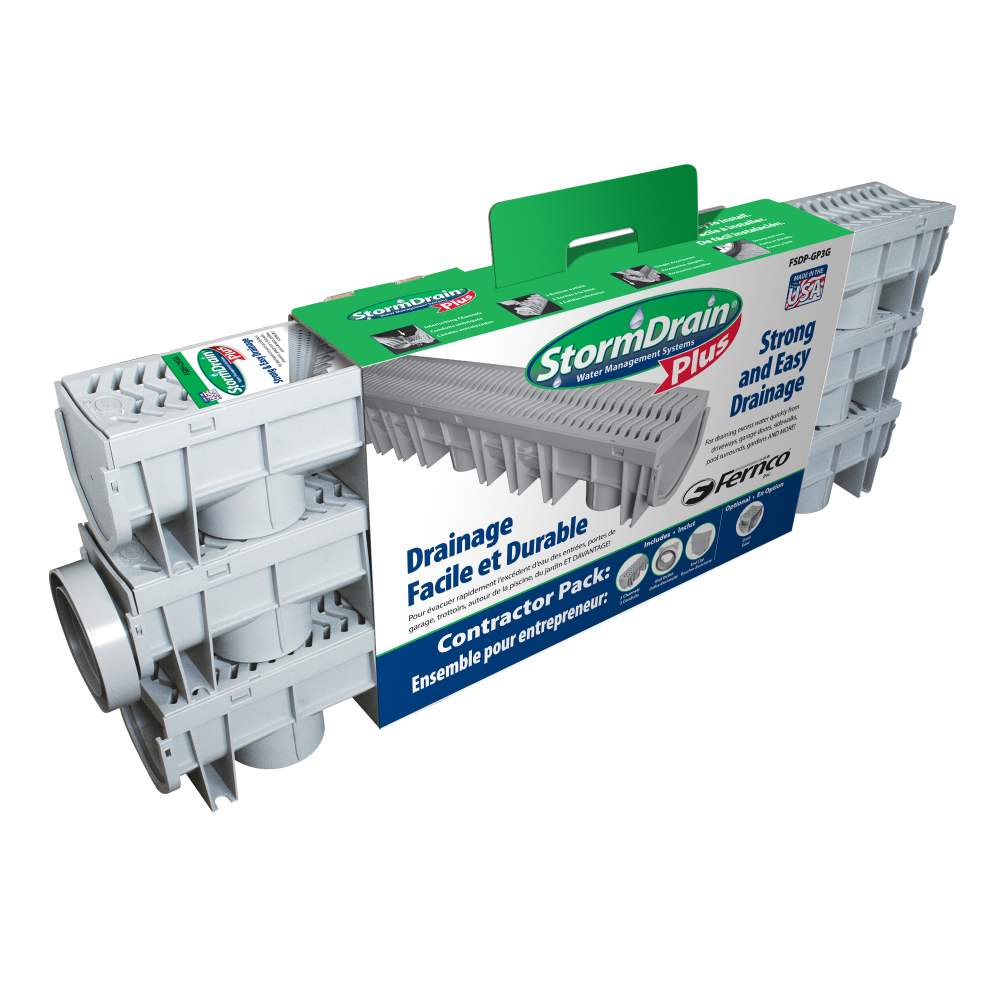

| FSDP-GP3G | Contractor Pack: three grey channels with grates, one End Cap and one End Outlet | 3 |
| FSDP-QUAD | StormDrain Plus Quad four-way connector | 3 |
| FSDP-EC | StormDrain Plus End Cap | 5 |
| FSDP-EO | StormDrain Plus End Outlet | 10 |
| Replacement Parts | ||
| FSDP-CH | StormDrain Plus channel only | — |
| FSDP-GG | StormDrain Plus grey grate only | — |
No matching StormDrain Plus products were found.
Class B: loads of 61–175 psi. Recommended for medium-duty pneumatic tire traffic, automobiles and light trucks traveling at speeds below 20 mph. Product suitability depends on proper installation and site conditions.
